Overview

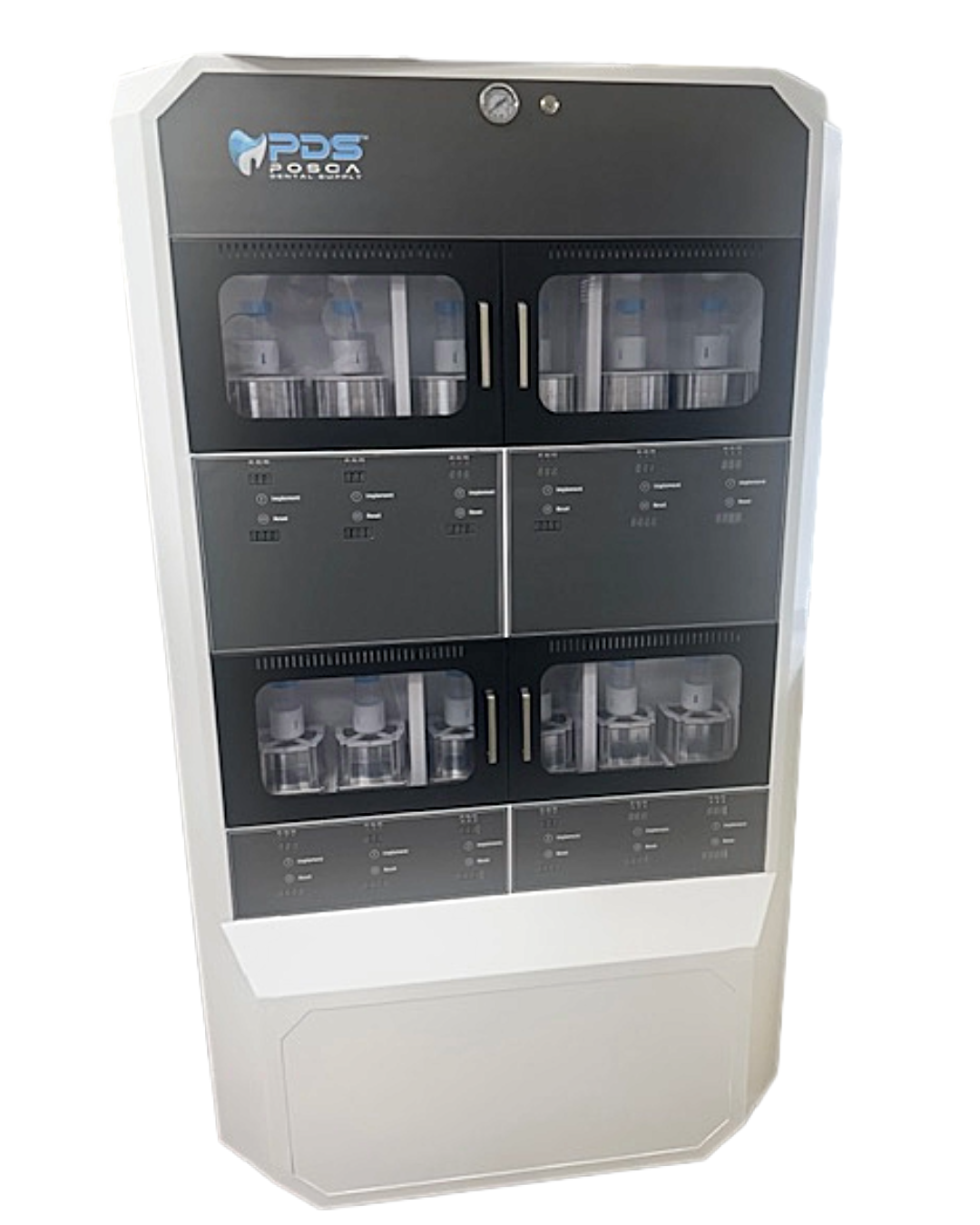

The R-1524 is designed for the pressing and polymerization of denture base resins in dental
laboratories. With advanced program control, continuous heating and pressure, and high
production capacity, it delivers consistent, high-quality denture results with excellent
surface finish and dimensional accuracy.

Key Functions & Features
• Denture Base Resin Processing: Engineered for the injection, pressing, and polymerization
of heat-cured denture base resins.
• Advanced Program Control System: Features an independently developed control
motherboard with one-touch operation for ease of use and repeatability.
• Fully Adjustable Parameters: Programmable settings accommodate a wide range of heat-
cured resin powders available on the market.
• High Production Capacity: Capable of processing up to 12 flasks simultaneously.
• Continuous Heat & Pressure Injection: Maintains constant heating and pressure to
compensate for resin shrinkage, resulting in higher strength and improved fit.
• Superior Denture Quality: Minimal occlusal elevation, smooth surfaces, and clean margins
that polish easily.
• Optimized Injection Timing: Resin injected at the ideal dough stage for tighter adaptation
and density.
• Scalable Workflow Integration: Can be configured for pipeline or continuous production
workflows.

Technical Specifications
Model: R-1524
Voltage: AC 220V
Current: AC 22.8A

Maximum Temperature: 110 °C
Power Rating: 5000 W
Working Pressure: 0.6–0.8 MPa
Weight: 265 kg
Dimensions: 90 × 46 × 184 cm

No water bath, no pressure pot for curing – a 220V electrical connection and an air compressor is all that is needed.

Please call for more details or to purchase
